MIX S machine

Series

MIX S
MIX SV

Parallel
paddle mixers

Capacity range

500-4800

Liters

/

Batch Range

375-3600

Liters

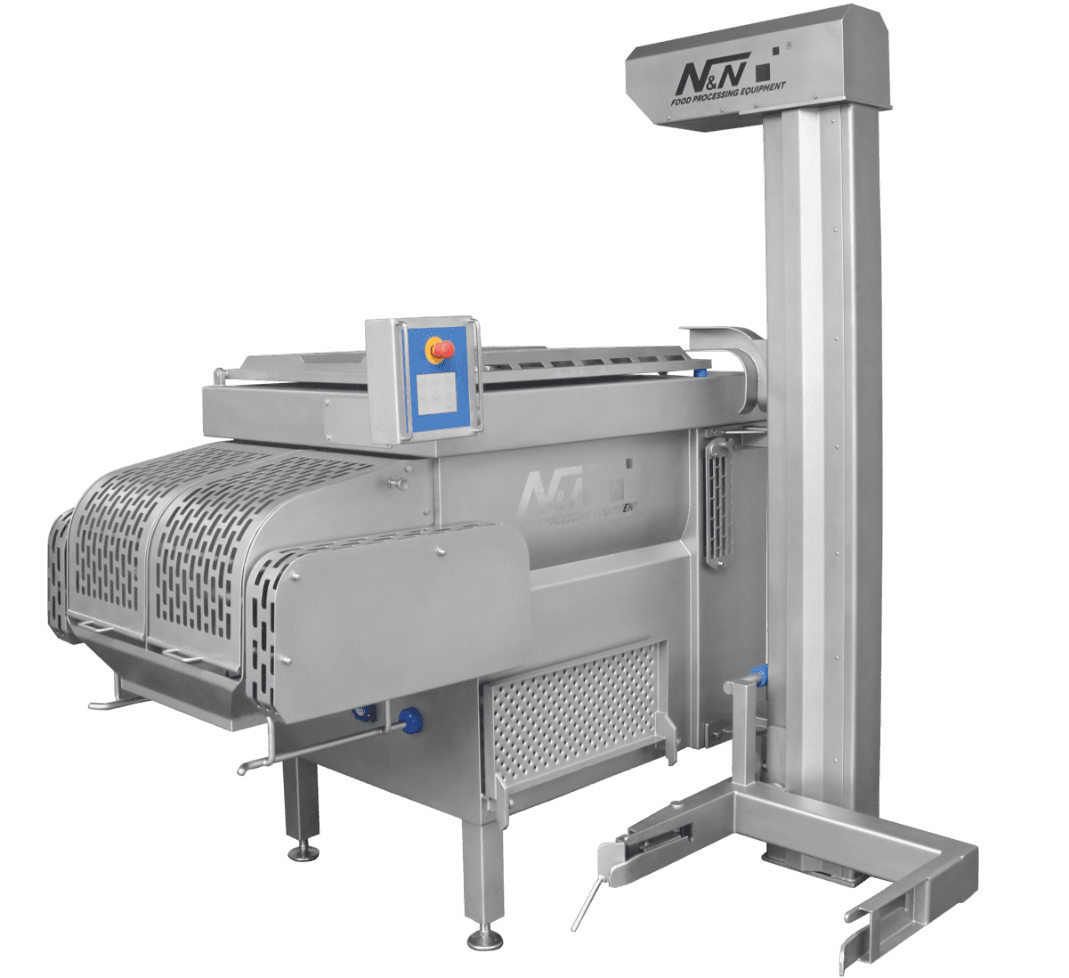

The MIX S and MIX SV series are the highest quality open and vacuum mixers with parallel shafts.

Machines can be equipped with paddle or ribbon shafts. With a wide range of products, individual configuration and a variety of accessories, you can choose a machine that is perfectly suited for your technological requirements and the reliable operation which you will be enjoying for decades.

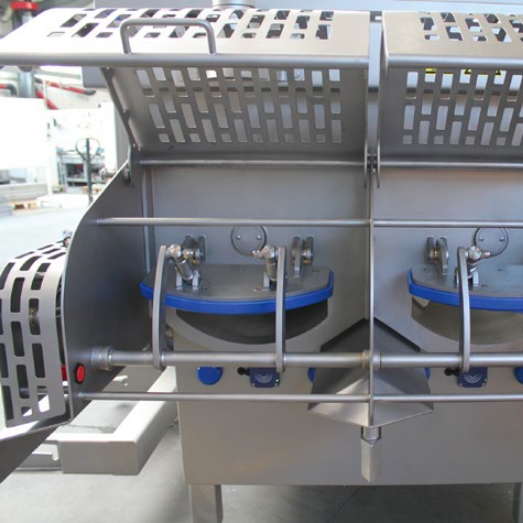

Unloading

The N&N's mixers of MIX S and MIX SV series, are fitted with to two unloading flaps and low clearance between the shafts and the mixing bowl, have a very short release time of the mixed product, while leaving only minimal amount of filling between individual batches.

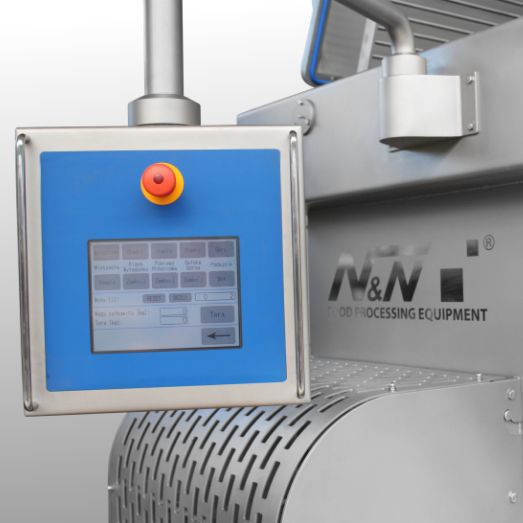

Control

The MIX S and MIX SV series mixers are equipped as standard with a colour and reliable HMI touch screen, which is user-friendly and intuitive to use. The software allows access control, manual and automatic operation and up to 100 mixing programs, where each can consist of 5 programmable steps.

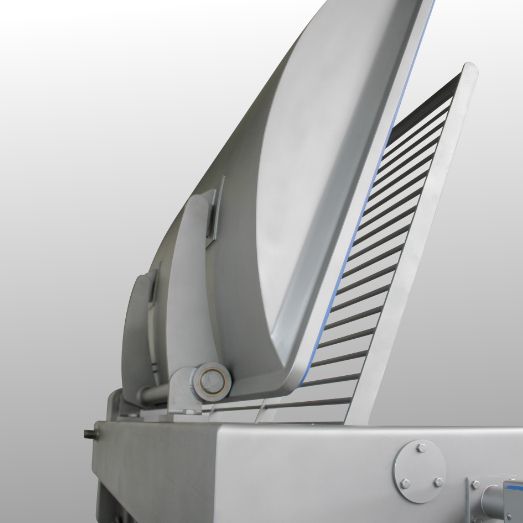

Vacuum system

The MIX SV series vacuum mixers have a reinforced bowl construction and a solid and tight top cover, which allows to achieve a vacuum of up to 99%. Vacuum improves protein extraction, liquids absorption, distribution and absorption of spices and other additives, enables density control, and eliminates air bubbles before emulsification, stuffing or forming.

Options


Column
loaders

All models of mixers can be equipped with one or two column loaders for standard DIN9797 euro bins or one loader for dolav container. Screw and belt conveyers are available on individual request.

Smooth
speed
adjustment

The rotating speed of the mixing shafts can be adjusted in the full range.

*Option only available with PLC and HMI

Temperature
measurement

The sensor built in the mixing bowl allows to have the temperature of the mixed product under constant control and gives the possibility to interrupt the process if the set parameter is exceeded. Easy reading and archiving on the control panel is an additional advantage.

*Option only available with PLC and HMI

Dosage
of water

The system of automatic dosing of any chosen amount of water or other liquids with similar physical parameters to the kneading-trough at any time in the manual process mode or in a predefined stage of the process in the automatic mode.

*Option only available with PLC and HMI

Weighing
system

The use of load cells mounted underneath the trough allows for accurate and precise weighing of products whilst in production, added and removed quantities and gives the ability to automatically start and stop the loading and unloading processes.

*Option only available with PLC and HMI

EASY-CLEAN
system

A system of monolithic silicone seals to help maintain the ideal cleanliness of the mixing bowl by quick and easy disassembly for precise washing without the use of tools.

Fully
sealed
cover

Tight cover is suggested for use in the mixing of dusty products.

Polished
batch and shafts

Surface of mixing bowl and mixing shafts with ground surface, which reduces the sticking effect of the product.

Cooling
system
bottom
injection

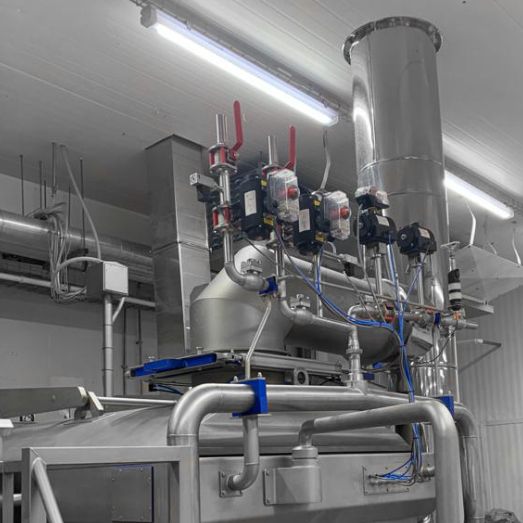

The optional LN2 or LCO2 liquid cooling system from below (direct nozzle injection) provides excellent process temperature control, improves product ductility, making moulding easier and more stable, thus maintaining product shape during further processing. Cooling also reduces bacterial growth and extends the shelf life of the mixed product.

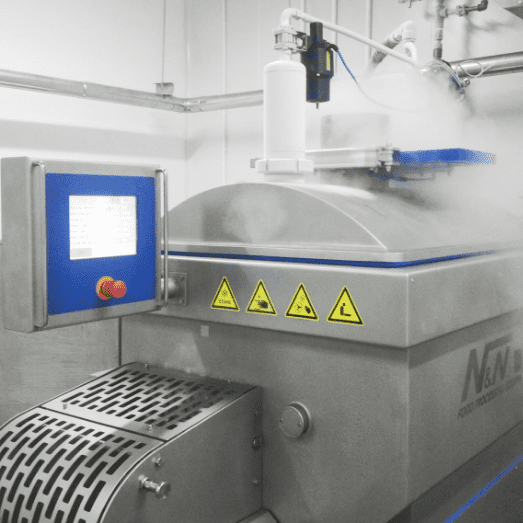

Cooling
system
top
injection

The optional LCO2 liquid cooling system from above (so-called snow-laying by means of snow canals) provides excellent process temperature control, improves product ductility, making moulding easier and more stable, thus maintaining product shape during further processing. Cooling also reduces bacterial growth and extends the shelf life of the mixed product.

Double
jacket

The double heating/cooling jacket for water or other media serves to better control the process by maintaining the required product temperature.

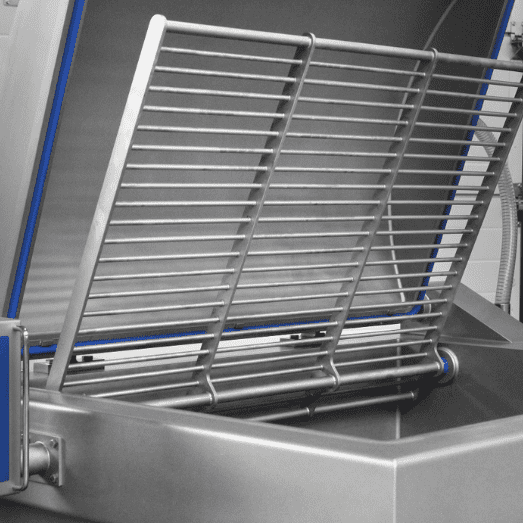

Additional
openwork
cover

Stationary mixers with full and tight top cover can be optionally equipped with an additional openwork cover, which allows us to work safely with the open main cover, which gives us the possibility of direct control or addition of spices, without interrupting the mixing process.

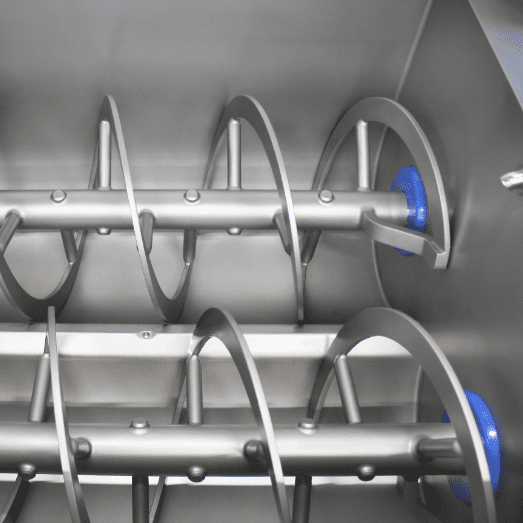

Ribbon
shafts

All models of the MIX S and MIX SV series can be optionally equipped with ribbon shafts.

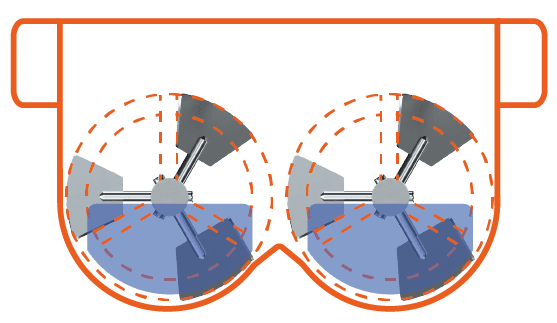

Parallel paddel shafts

In mixers of MIX S and MIX SV series the mixing process is carried out by two twin parallel paddle or ribbon shafts, placed at the same heights. The characteristic feature of this series of machines is the possibility to set the speed and direction of rotation independently for each shaft.

  • MIX S - Mixers
  • MIX SV - Vacuum mixers

  • Mixers

    MIX S

    Technical data

    Capacity [l]500
    Maximum load [l]375
    Installed power [kW]2x3,0
    Rotation speed of the shafts [obr/min]20/40
    Standard controlsPLC with HMI
    Net weight of the machine [kg]890
    BUSCH vacuum pump [m3/h]-
    Current protection25
    Loading optionsPZ 2/250
    Unload200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]750
    Maximum load [l]563
    Installed power [kW]2x5,5
    Rotation speed of the shafts [obr/min]18/36
    Standard controlsPLC with HMI
    Net weight of the machine [kg]1100
    BUSCH vacuum pump [m3/h]-
    Current protection32
    Loading optionsPZ 2/250
    Unload200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]1000
    Maximum load [l]750
    Installed power [kW]2x5,5
    Rotation speed of the shafts [obr/min]16/32
    Standard controlsPLC with HMI
    Net weight of the machine [kg]1420
    BUSCH vacuum pump [m3/h]-
    Current protection32
    Loading options PZ 2/250 or PW 2/1000
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]1250
    Maximum load [l]938
    Installed power [kW]2x5,5
    Rotation speed of the shafts [obr/min]14/28
    Standard controlsPLC with HMI
    Net weight of the machine [kg]1928
    BUSCH vacuum pump [m3/h]-
    Current protection32
    Loading options PZ 2/250 or PW 2/1000
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]1600
    Maximum load [l]1200
    Installed power [kW]2x7,5
    Rotation speed of the shafts [obr/min]14/28
    Standard controlsPLC with HMI
    Net weight of the machine [kg]2420
    BUSCH vacuum pump [m3/h]-
    Current protection40
    Loading options PZ 2/250 or PW 2/1000
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]2100
    Maximum load [l]1575
    Installed power [kW]2x11,0
    Rotation speed of the shafts [obr/min]13/26
    Standard controlsPLC with HMI
    Net weight of the machine [kg]2840
    BUSCH vacuum pump [m3/h]-
    Current protection63
    Loading options PZ 2/250 or PW 2/1000
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]2600
    Maximum load [l]1950
    Installed power [kW]2x11,0
    Rotation speed of the shafts [obr/min]12/24
    Standard controlsPLC with HMI
    Net weight of the machine [kg]3620
    BUSCH vacuum pump [m3/h]-
    Current protection63
    Loading options PZ 2/250 or PW 2/1000
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]3200
    Maximum load [l]2400
    Installed power [kW]2x15,0
    Rotation speed of the shafts [obr/min]3-25
    Standard controlsPLC with HMI
    Net weight of the machine [kg]4380
    BUSCH vacuum pump [m3/h]-
    Current protection100
    Loading options PZ 2/250 or PW 2/1000
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]3800
    Maximum load [l]2850
    Installed power [kW]2x15,0
    Rotation speed of the shafts [obr/min]2-22
    Standard controlsPLC with HMI
    Net weight of the machine [kg]4920
    BUSCH vacuum pump [m3/h]-
    Current protection100
    Loading options PZ 2/250 or PW 2/1000
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]4800
    Maximum load [l]3600
    Installed power [kW]2x22,0
    Rotation speed of the shafts [obr/min]2-22
    Standard controlsPLC with HMI
    Net weight of the machine [kg]5420
    BUSCH vacuum pump [m3/h]-
    Current protection120
    Loading options PZ 2/250 or PW 2/1000
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6

  • Vacuum mixers

    MIX SV

    Technical data

    Capacity [l]500
    Maximum load [l]375
    Installed power [kW]2x3,0
    Rotation speed of the shafts [obr/min]5-40
    Standard controlsPLC with HMI
    Net weight of the machine [kg]1020
    BUSCH vacuum pump [m3/h]21
    Current protection25
    Loading optionsPZ 2/250
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]750
    Maximum load [l]563
    Installed power [kW]2x5,5
    Rotation speed of the shafts [obr/min]4-36
    Standard controlsPLC with HMI
    Net weight of the machine [kg]1320
    BUSCH vacuum pump [m3/h]40
    Current protection32
    Loading optionsPZ 2/250
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]1000
    Maximum load [l]750
    Installed power [kW]2x5,5
    Rotation speed of the shafts [obr/min]4-32
    Standard controlsPLC with HMI
    Net weight of the machine [kg]1620
    BUSCH vacuum pump [m3/h]40
    Current protection32
    Loading options PZ 2/250 or PW 2/1000
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]1250
    Maximum load [l]938
    Installed power [kW]2x5,5
    Rotation speed of the shafts [obr/min]4-30
    Standard controlsPLC with HMI
    Net weight of the machine [kg]2070
    BUSCH vacuum pump [m3/h]40
    Current protection32
    Loading options PZ 2/250 or PW 2/1000
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]1600
    Maximum load [l]1200
    Installed power [kW]2x7,5
    Rotation speed of the shafts [obr/min]3-28
    Standard controlsPLC with HMI
    Net weight of the machine [kg]2820
    BUSCH vacuum pump [m3/h]63
    Current protection40
    Loading options PZ 2/250 or PW 2/1000
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]2100
    Maximum load [l]1575
    Installed power [kW]2x11,0
    Rotation speed of the shafts [obr/min]3/28
    Standard controlsPLC with HMI
    Net weight of the machine [kg]3320
    BUSCH vacuum pump [m3/h]100
    Current protection63
    Loading options PZ 2/250 or PW 2/1000
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]2600
    Maximum load [l]1950
    Installed power [kW]2x11,0
    Rotation speed of the shafts [obr/min]3-25
    Standard controlsPLC with HMI
    Net weight of the machine [kg]4170
    BUSCH vacuum pump [m3/h]100
    Current protection63
    Loading options PZ 2/250 or PW 2/1000
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]3200
    Maximum load [l]2400
    Installed power [kW]2x15,0
    Rotation speed of the shafts [obr/min]3-25
    Standard controlsPLC with HMI
    Net weight of the machine [kg]5020
    BUSCH vacuum pump [m3/h]160
    Current protection100
    Loading options PZ 2/250 or PW 2/1000
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]3800
    Maximum load [l]2850
    Installed power [kW]2x15,0
    Rotation speed of the shafts [obr/min]2-22
    Standard controlsPLC with HMI
    Net weight of the machine [kg]5890
    BUSCH vacuum pump [m3/h]160
    Current protection100
    Loading options PZ 2/250 or PW 2/1000
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]4800
    Maximum load [l]3600
    Installed power [kW]2x22,0
    Rotation speed of the shafts [obr/min]2-22
    Standard controlsPLC with HMI
    Net weight of the machine [kg]6570
    BUSCH vacuum pump [m3/h]200
    Current protection120
    Loading options PZ 2/250 or PW 2/1000
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6

Application

The MIX S and MIX SV series equipment is an universal type of mixers which, depending on the types of ribbon or paddle shafts used, will be perfect for mixing products of medium and high density, such as finely and very finely chopped meat stuffing, cheese stuffing or animal feeds.

Meat / poultry / fish stuffing

Animal feed

Cheese stuffing
