MIX Z machines

Series

MIX Z
MIX ZV

Intermeshing Z-type shafts
mixers with tilting bowl

Capacity range

300-1500

Liters

/

Batch Range

180-900

Liters

The MIX-Z and MIX-ZV series are the highest quality two-shaft open and vacuum mixers.

Machines are equipped with Z-type shafts or optional paddle shafts. Wide range of products, individual configuration and a variety of accessories, you can choose a machine that is perfectly suited to your technological requirements and the reliable operation of which you will be enjoying for decades.

Unloading

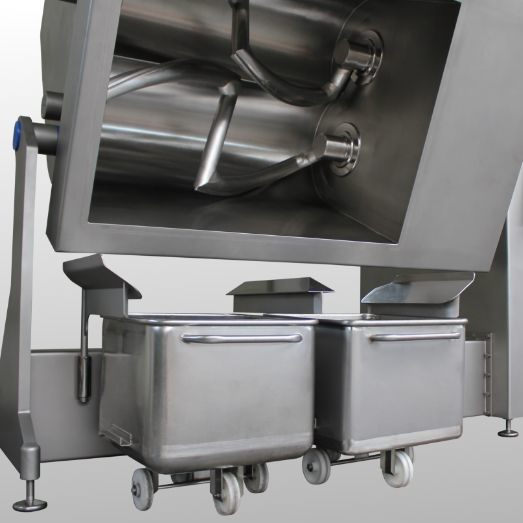

The MIX Z and MIX ZV series mixers are equipped as standard with a hydraulic opening system of the mixing chamber cover and unloading, which is performed by tilting the bowl directly to two euro bins or other containers, which enables easy and quick emptying of the mixing chamber.

Control

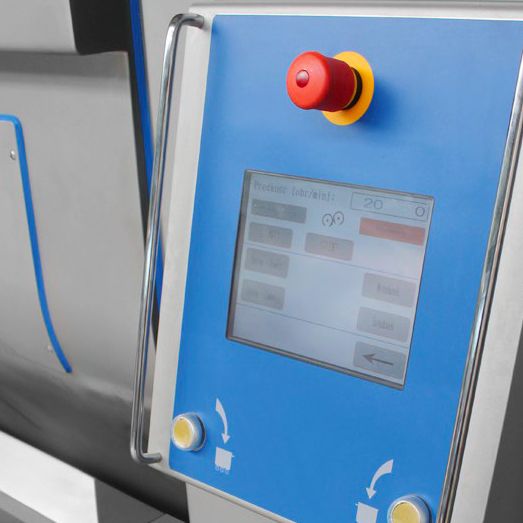

The MIX Z and MIX ZV series mixers are equipped as standard with a colour and reliable HMI touch screen, which is user-friendly and intuitive to use. The soft ware allows access control, manual and automatic operation and up to 100 mixing programs, where each can consist of 5 programmable steps.

Vacuum system

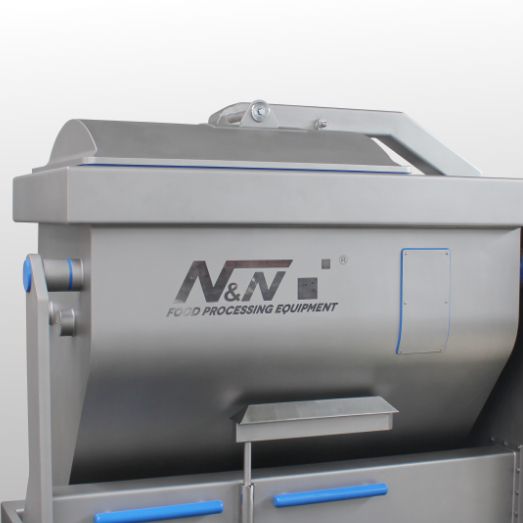

The MIX ZV series vacuum mixers have a reinforced bowl construction and a solid and tight top cover, which allows to achieve a vacuum of up to 99%. Vacuum improves protein extraction, liquids absorption, distribution and absorption of spices and other additives, enables density control and eliminates air bubbles before emulsification, stuffing or forming.

Options


Column
loaders

All models of mixers can be equipped with one or two column loaders for standard DIN9797 euro bins or one loader for dolav container. Screw and belt conveyers are available on individual request.

Temperature
measurement

The sensor built in the mixing bowl allows to have the temperature of the mixed product under constant control and gives the possibility to interrupt the process if the set parameter is exceeded. Easy reading and archiving on the control panel is an additional advantage.

*Option only available with PLC and HMI

Dosage
of water

The system of automatic dosing of any chosen amount of water or other liquids with similar physical parameters to the kneading-trough at any time in the manual process mode or in a predefined stage of the process in the automatic mode.

*Option only available with PLC and HMI

Weighing
system

The use of load cells mounted underneath the trough allows for accurate and precise weighing of products whilst in production, added and removed quantities and gives the ability to automatically start and stop the loading and unloading processes.

*Option only available with PLC and HMI

EASY-CLEAN
system

A system of monolithic silicone seals to help maintain the ideal cleanliness of the mixing bowl by quick and easy disassembly for precise washing without the use of tools.

Fully
sealed
cover

Tight cover is suggested for use in the mixing of dusty products.

Double
jacket

The double heating/cooling jacket for water or other media serves to better control the process by maintaining the required product temperature.

Paddle
shafts

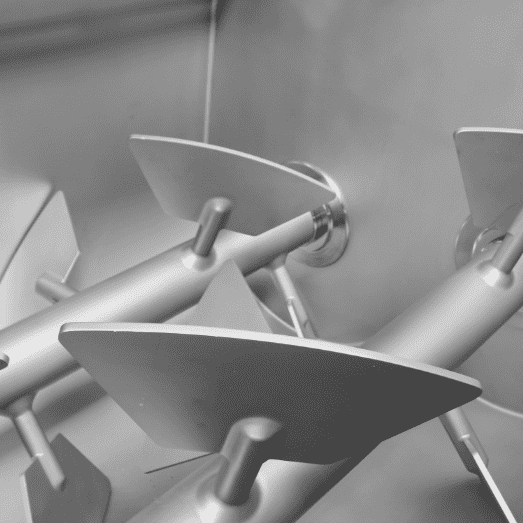

All models of the MIX Z, MIX ZV, MIX SZ and MIX SZV series can be optionally equipped with paddle shafts.

Intermeshing Z-type shafts

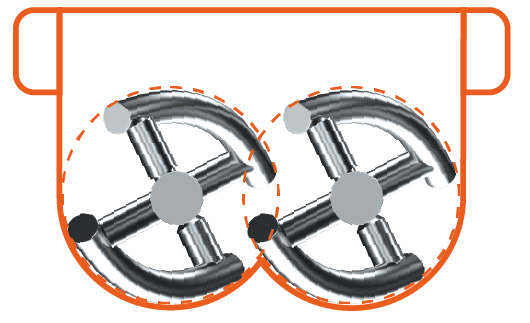

In MIX Z and MIX ZV series mixers the mixing process is carried out by two intermeshing Z-type or optionally paddle shafts, placed at the same heights. Mixing is carried out by rotating both shafts at the same preset speed inwards or outwards.

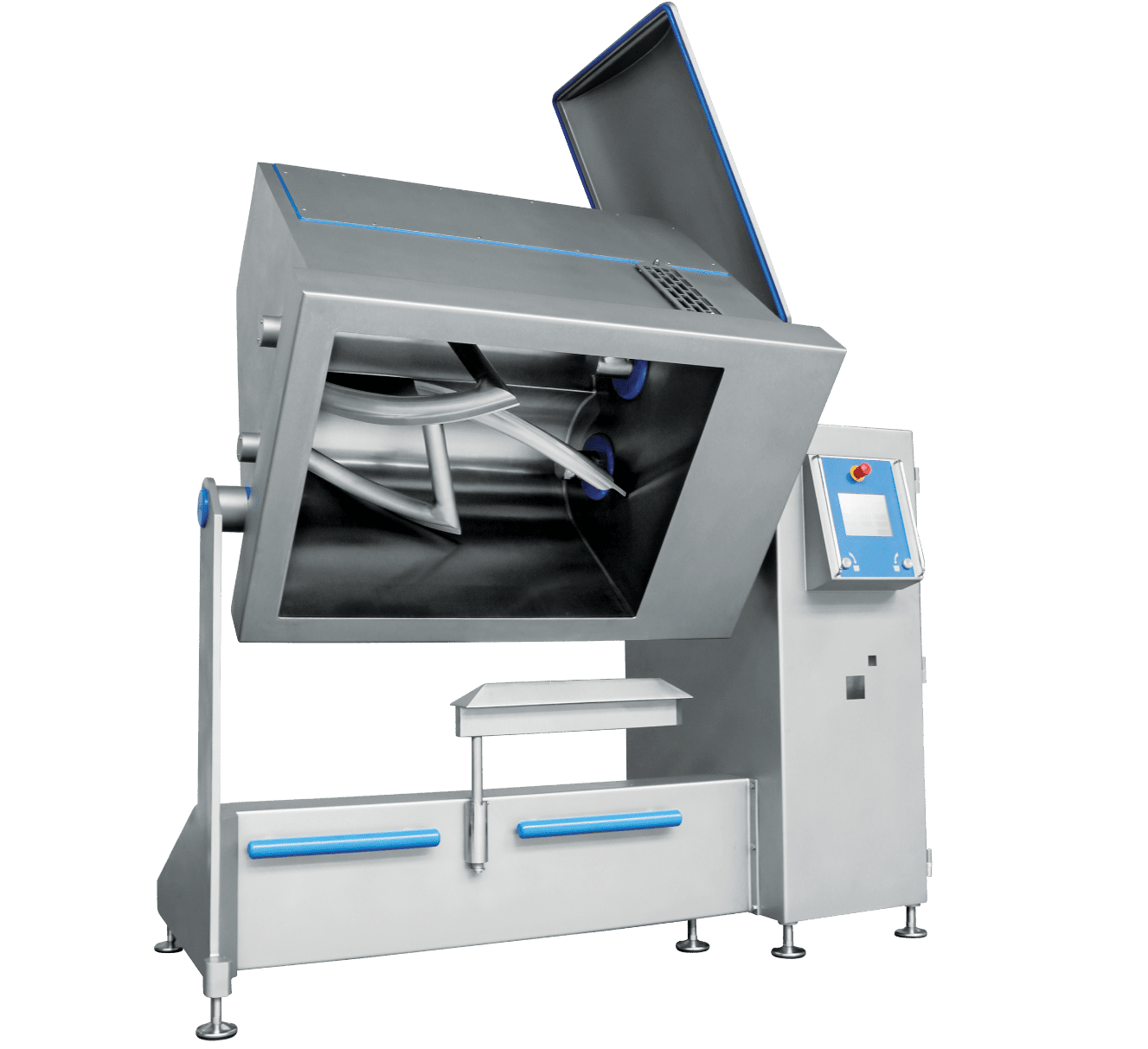

  • MIX Z - Tilting bowl mixers
  • MIX ZV - Tilting bowl vacuum mixers

  • Tilt bowl mixers

    MIX Z

    Technical data

    Capacity [l]300
    Maximum load [l]180
    Installed power [kW]7,5
    Rotation speed of the shafts [obr/min]5-48
    Standard controlsPLC with HMI
    Net weight of the machine [kg]1100
    BUSCH vacuum pump [m3/h]-
    Current protection32
    Loading optionsPW 2/250
    Unload200L
    Opening/Closing coversHydraulic
    Capacity [l]500
    Maximum load [l]300
    Installed power [kW]11
    Rotation speed of the shafts [obr/min]4-40
    Standard controlsPLC with HMI
    Net weight of the machine [kg]1420
    BUSCH vacuum pump [m3/h]-
    Current protection50
    Loading optionsPW 2/250
    Unload2x200L
    Opening/Closing coversHydraulic
    Capacity [l]1000
    Maximum load [l]600
    Installed power [kW]22
    Rotation speed of the shafts [obr/min]4-30
    Standard controlsPLC with HMI
    Net weight of the machine [kg]2850
    BUSCH vacuum pump [m3/h]-
    Current protection100
    Loading optionsPW 2/250
    Unload2x200L
    Opening/Closing coversHydraulic
    Capacity [l]1500
    Maximum load [l]900
    Installed power [kW]30
    Rotation speed of the shafts [obr/min]3-28
    Standard controlsPLC with HMI
    Net weight of the machine [kg]4050
    BUSCH vacuum pump [m3/h]-
    Current protection120
    Loading optionsPW 2/250
    Unload2x200L
    Opening/Closing coversHydraulic
    Capacity [l]2600
    Maximum load [l]1560
    Installed power [kW]55
    Rotation speed of the shafts [obr/min]3-26
    Standard controlsPLC with HMI
    Net weight of the machine [kg]6050
    BUSCH vacuum pump [m3/h]-
    Current protection160
    Loading optionsPW 2/250
    Unload2x200L
    Opening/Closing coversHydraulic

  • Tilt bowl vacuum mixers

    MIX ZV

    Technical data

    Capacity [l]300
    Maximum load [l]180
    Installed power [kW]7,5
    Rotation speed of the shafts [obr/min]5-48
    Standard controlsPLC with HMI
    Net weight of the machine [kg]1180
    BUSCH vacuum pump [m3/h]21
    Current protection32
    Loading optionsPW 2/250
    Unload200L
    Opening/Closing coversHydraulic
    Capacity [l]500
    Maximum load [l]300
    Installed power [kW]11
    Rotation speed of the shafts [obr/min]4-40
    Standard controlsPLC with HMI
    Net weight of the machine [kg]1550
    BUSCH vacuum pump [m3/h]21
    Current protection50
    Loading optionsPW 2/250
    Unload2x200L
    Opening/Closing coversHydraulic
    Capacity [l]1000
    Maximum load [l]600
    Installed power [kW]22
    Rotation speed of the shafts [obr/min]4-30
    Standard controlsPLC with HMI
    Net weight of the machine [kg]3020
    BUSCH vacuum pump [m3/h]40
    Current protection100
    Loading optionsPW 2/250
    Unload2x200L
    Opening/Closing coversHydraulic
    Capacity [l]1500
    Maximum load [l]900
    Installed power [kW]30
    Rotation speed of the shafts [obr/min]3-28
    Standard controlsPLC with HMI
    Net weight of the machine [kg]4250
    BUSCH vacuum pump [m3/h]63
    Current protection120
    Loading optionsPW 2/250
    Unload2x200L
    Opening/Closing coversHydraulic
    Capacity [l]2600
    Maximum load [l]1560
    Installed power [kW]55
    Rotation speed of the shafts [obr/min]3-26
    Standard controlsPLC with HMI
    Net weight of the machine [kg]6300
    BUSCH vacuum pump [m3/h]100
    Current protection160
    Loading optionsPW 2/250
    Unload2x200L
    Opening/Closing coversHydraulic

Application

The N&N’s MIX Z and MIX ZV series mixers are designed for very intensive mixing of highly fragmented thick and heavy meat stuffing, e.g. in the production of kebab meat as well as bakery and confectionery masses.
